Auger bit set, 8-piece Ø 10 - 24 mm, length 600 mm, Lewis shape

Intended use

Snake drill bits are particularly well suited for deep-hole drilling in softwood and European hardwoods, such as beech and oak. They are not suitable for tropical hardwoods.

Drill bits with a diameter of up to 20 mm are used in hand drills or powerful cordless screwdrivers.

Technical data

Nominal diameter [mm]: 10, 12, 14, 16, 18, 20, 22, 24
Total length [mm]: 600
Material: Carbon tool steel

Made from hardened carbon tool steel

Precise centring is possible thanks to the centring tip

Feed thread on the centring tip, requiring minimal pressure

Excellent chip removal

Clean hole edges thanks to the pilot cutter

Description of the

The auger bits in this set are made from high-quality, hardened carbon tool steel. This choice of material enables a high cutting performance and load capacity. The auger bit is also equipped with a centring tip, which enables very precise centring of the bit. A retractable thread on the centre point pulls the drill bit into the wood so that less pressure needs to be exerted when drilling.

While a clean and tear-free hole edge can also be produced at low speeds thanks to the pre-cutter, the auger bit also impresses with very good chip removal.

The auger bit is suitable for drilling through holes in beams and rafters as well as for making deep blind holes.

A taper in the direction of the clamping shank of 1:50 to 1:100 is intended to prevent jamming in the hole.

The set is supplied in a practical wooden box.

Scope of delivery

  • 1 x auger drill bit, Ø 10 mm, length 600 mm, shank 8.5 mm, hexagonal, Lewis type
  • 1 x auger drill bit, Ø 12 mm, length 600 mm, shank 10.5 mm, hexagonal, Lewis type
  • 1 x auger drill bit, Ø 14 mm, length 600 mm, shank 10.5 mm, hexagonal, Lewis type
  • 1 x auger drill bit, Ø 16 mm, length 600 mm, shank 10.5 mm, hexagonal, Lewis type
  • 1 x auger bit, Ø 18 mm, length 600 mm, shank 10.5 mm, hexagonal, Lewis type
  • 1 x auger bit Ø 20 mm, length 600 mm, shank 10.5 mm, hexagonal, Lewis type
  • 1 x auger drill bit, Ø 22 mm, length 600 mm, shank 10.5 mm, hexagonal, Lewis type
  • 1 x auger drill bit, Ø 24 mm, length 600 mm, shank diameter 10.5 mm, hexagonal, Lewis type

Find out more about the brand and the products from

Product comparison
Article image

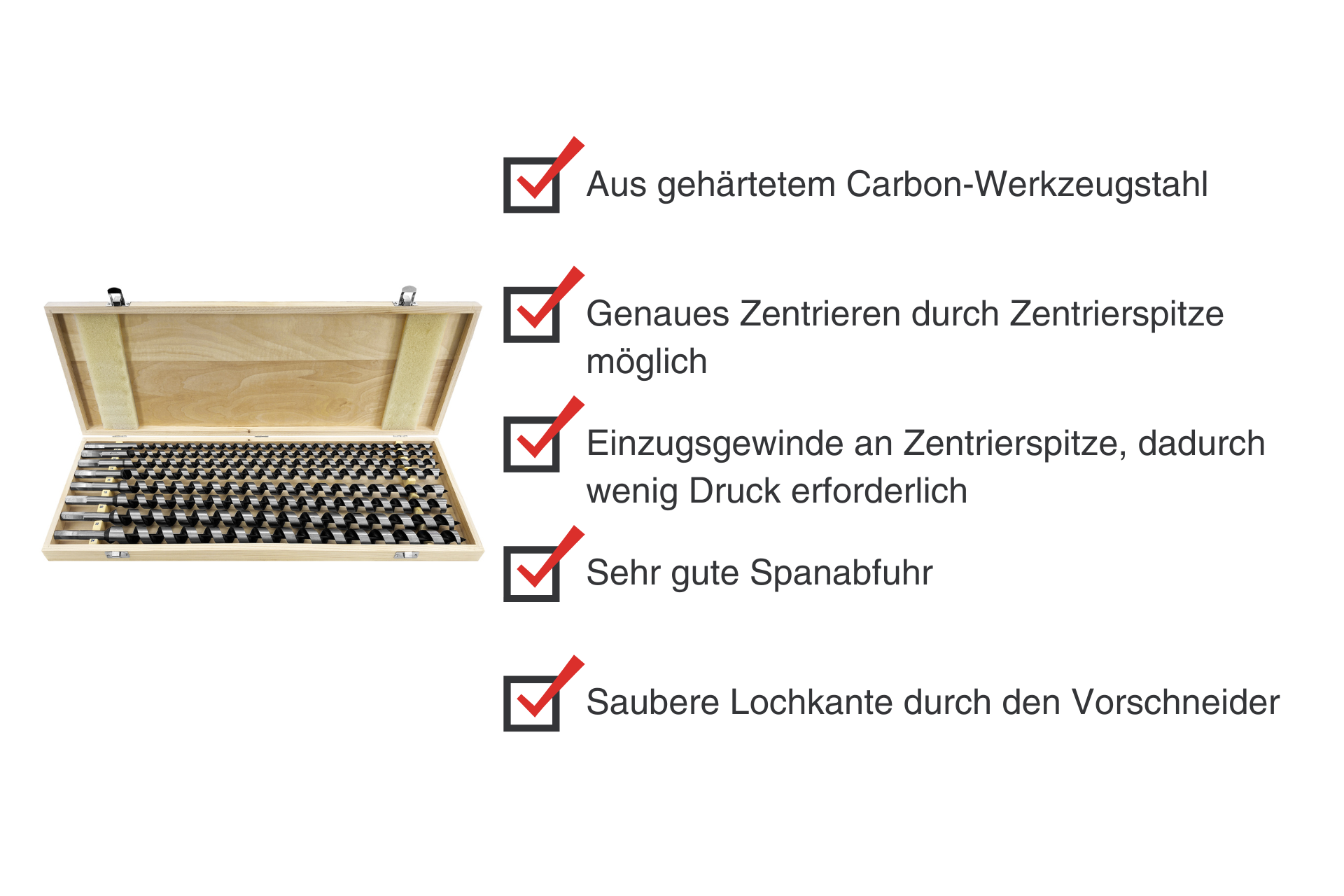

Open wooden box with 8-piece auger bit set in different diameters. The drill bits are neatly lined up in the box.
Open wooden box with 8 auger bits, sizes 6-20 mm, sorted by diameter. The Lewis shape of the drill bits is easily recognisable.
An open wooden box shows an 8-piece set of auger bits. The drill bits are sorted by size, from small to large.
Wooden box, open, with 8 auger bits in various sizes (6-20mm). Lewis shape, with centre point and retractable thread.
Product title
Auger bit set, 8-piece Ø 10 - 24 mm, length 600 mm, Lewis shape
Auger bit set, 8-piece Ø 6 - 20 mm, length 230 mm, Lewis shape
Auger bit set, 8-piece Ø 10 - 24 mm, length 460 mm, shape Lewis
Auger bit set, 8-piece Ø 6 - 20 mm, length 200 mm, Lewis shape
Valuation

Average rating of 4.6 out of 5 stars

Average rating of 4.8 out of 5 stars

Average rating of 5 out of 5 stars

Description of the

The auger bits in this set are made from high-quality, hardened carbon tool steel. This choice of material enables a high cutting performance and load capacity. The auger bit is also equipped with a centring tip, which enables very precise centring of the bit. A retractable thread on the centre point pulls the drill bit into the wood so that less pressure needs to be exerted when drilling.

While a clean and tear-free hole edge can also be produced at low speeds thanks to the pre-cutter, the auger bit also impresses with very good chip removal.

The auger bit is suitable for drilling through holes in beams and rafters as well as for making deep blind holes.

A taper in the direction of the clamping shank of 1:50 to 1:100 is intended to prevent jamming in the hole.

The set is supplied in a practical wooden box.

Our auger bits are made from high-quality, hardened carbon tool steel. This choice of material enables high cutting performance and resilience. The auger bit is also equipped with a centring tip, which enables very precise centring of the drill bit. A retractable thread on the centre point pulls the drill bit into the wood so that less pressure needs to be exerted when drilling.

While a clean and tear-free hole edge can also be produced at low speeds thanks to the pre-cutter, the auger bit also impresses with very good chip removal.

The auger bit is suitable for drilling through holes in beams and rafters as well as for making deep blind holes.

A taper in the direction of the clamping shank of 1:50 to 1:100 is intended to prevent jamming in the hole.

The set is supplied in a practical wooden box.

Our auger bits are made from high-quality, hardened carbon tool steel. This choice of material enables high cutting performance and resilience. The auger bit is also equipped with a centring tip, which enables very precise centring of the drill bit. A retractable thread on the centre point pulls the drill bit into the wood so that less pressure needs to be exerted when drilling.

While a clean and tear-free hole edge can also be produced at low speeds thanks to the pre-cutter, the auger bit also impresses with very good chip removal.

The auger bit is suitable for drilling through holes in beams and rafters as well as for making deep blind holes.

A taper in the direction of the clamping shank of 1:50 to 1:100 is intended to prevent jamming in the hole.

The set is supplied in a practical wooden box.

The auger bits in this set are made from high-quality, hardened carbon tool steel. This choice of material enables a high cutting performance and load capacity. The auger bit is also equipped with a centring tip, which enables very precise centring of the bit. A retractable thread on the centre point pulls the drill bit into the wood so that less pressure needs to be exerted when drilling.

While a clean and tear-free hole edge can also be produced at low speeds thanks to the pre-cutter, the auger bit also impresses with very good chip removal.

The auger bit is suitable for drilling through holes in beams and rafters as well as for making deep blind holes.

A taper in the direction of the clamping shank of 1:50 to 1:100 is intended to prevent jamming in the hole.

The set is supplied in a practical wooden box.

Price

€35.63*

Contents: 1 pcs

€16.63*

Contents: 1 pcs

€28.98*

Contents: 1 pcs

€14.73*

Contents: 1 pcs

Nominal diameter [mm]
10; 12; 14; 16; 18; 20; 22; 24
6; 8; 10; 12; 14; 16; 18; 20
10; 12; 14; 16; 18; 20; 22; 24
6; 8; 10; 12; 14; 16; 18; 20
Total length [mm]
600
230
460
200
Material
Carbon tool steel
Carbon tool steel
Carbon tool steel
Carbon tool steel
