Measuring stand with magnetic base and centre clamp
€21.00*
Prices incl. 19% VAT. plus Shipping costs
Delivery time: 1-3 working days **
More than 10 pieces available (online and in specialist shops)
Intended use
A measuring stand is used to hold measuring devices such as dial gauges or feeler lever measuring devices. The base usually consists of a magnetic block. The main component of a measuring stand is the arm. Its adjustable joints allow the measuring instrument to be positioned at the desired location. There are various mounts at the end of the articulated rod for attaching the required measuring instrument. A distinction is made between measuring stands with central clamping and measuring stands with individual joint adjustment.
Technical data
| Arm length [mm]: | 145 |
|---|---|
| Dimensions magnetic block [mm]: | 30 x 35 x 36 |
| Magnetic holding force [kg]: | 40 |
| Total height [mm]: | 195 |
| Ø mounting hole [mm]: | 8 |

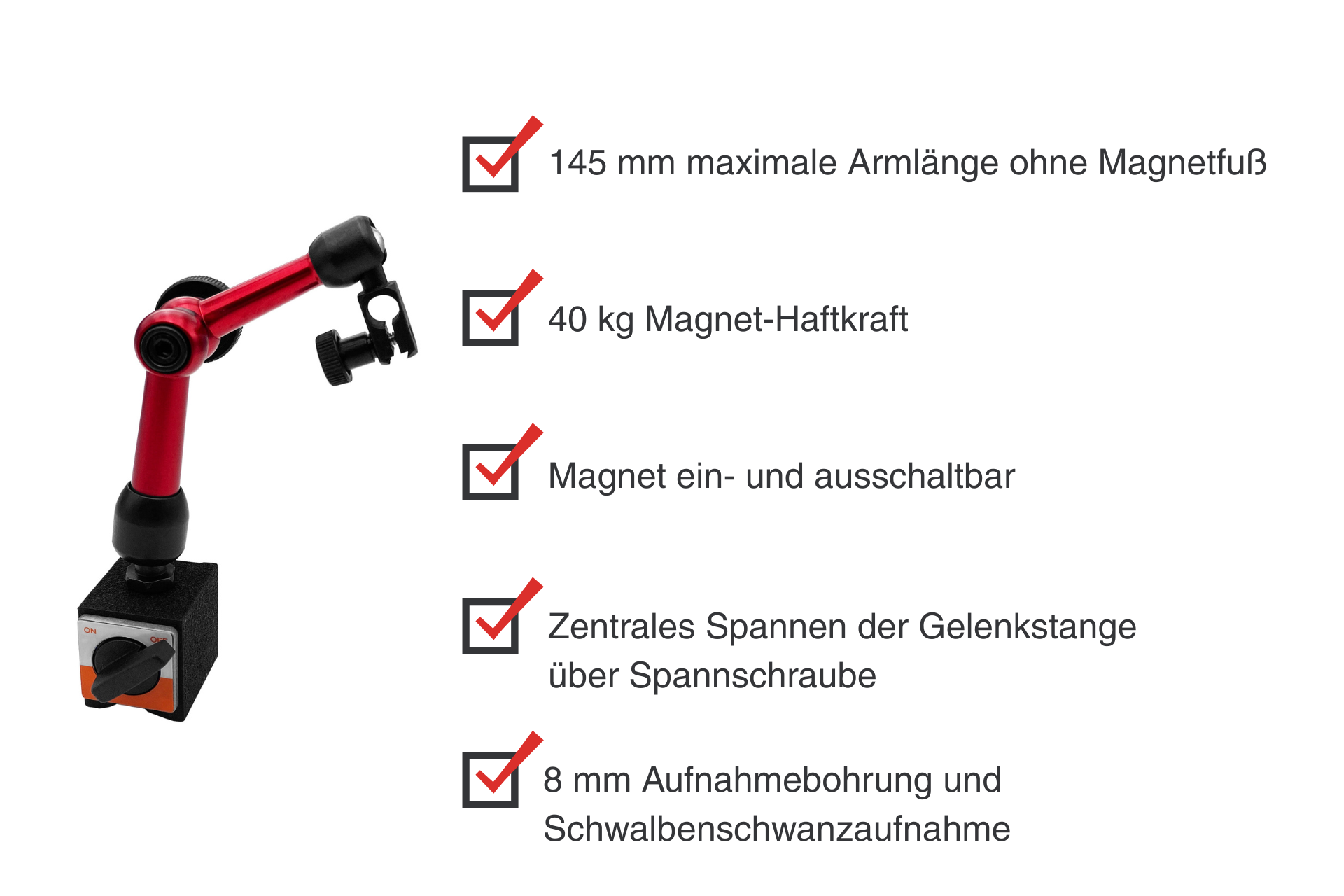

145 mm maximum arm length without magnetic base
40 kg magnetic holding force
Magnet can be switched on and off
Central clamping of the articulated rod via clamping screw
8 mm mounting hole and dovetail mount
Description of the
This measuring stand is characterised in particular by the fact that the three joints can be easily and quickly clamped centrally using a locking screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There is both a cylindrical mount and a dovetail mount at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
Scope of delivery
- 1x measuring stand with magnetic base and centre clamp
More about the brand and products from
This measuring stand is characterised in particular by the fact that the three joints can be easily and quickly clamped centrally using a locking screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There is both a cylindrical mount and a dovetail mount at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
This measuring stand is characterised in particular by the fact that the three joints can be easily and quickly clamped centrally using a locking screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There is both a cylindrical mount and a dovetail mount at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
The joints of this measuring stand can be clamped individually and securely using clamping screws. The arm has a fine adjustment by means of a knurled screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There are two cylindrical holders at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
This set consists of a measuring stand and a matching analogue dial gauge. The joints of this measuring stand can be clamped individually and securely using clamping screws. The arm has fine adjustment by means of a knurled screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There are two cylindrical holders at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch. The analogue dial gauge has a measuring range of 0 to 10 mm with a reading accuracy of 0.01 mm. The dial gauge can be attached to the measuring stand either via the clamping shaft with a diameter of 8 mm or via an additional mounting hole on the rear.
