Measuring stand with magnetic base and fine adjustment
€10.50*
% €12.00* (12.5% saved)Prices incl. 19% VAT. plus Shipping costs
Delivery time: 1-3 working days **
More than 10 pieces available (online and in specialist shops)
Intended use
A measuring stand is used to hold measuring devices such as dial gauges or feeler lever measuring devices. The base usually consists of a magnetic block. The main component of a measuring stand is the arm. Its adjustable joints allow the measuring instrument to be positioned at the desired location. There are various mounts at the end of the articulated rod for attaching the required measuring instrument. A distinction is made between measuring stands with central clamping and measuring stands with individual joint adjustment.
Technical data
| Arm length [mm]: | 300 |
|---|---|
| Dimensions magnetic block [mm]: | 50 x 64 x 55 |
| Magnetic holding force [kg]: | 60 |
| Total height [mm]: | 355 |
| Ø mounting hole [mm]: | 4 / 8 |

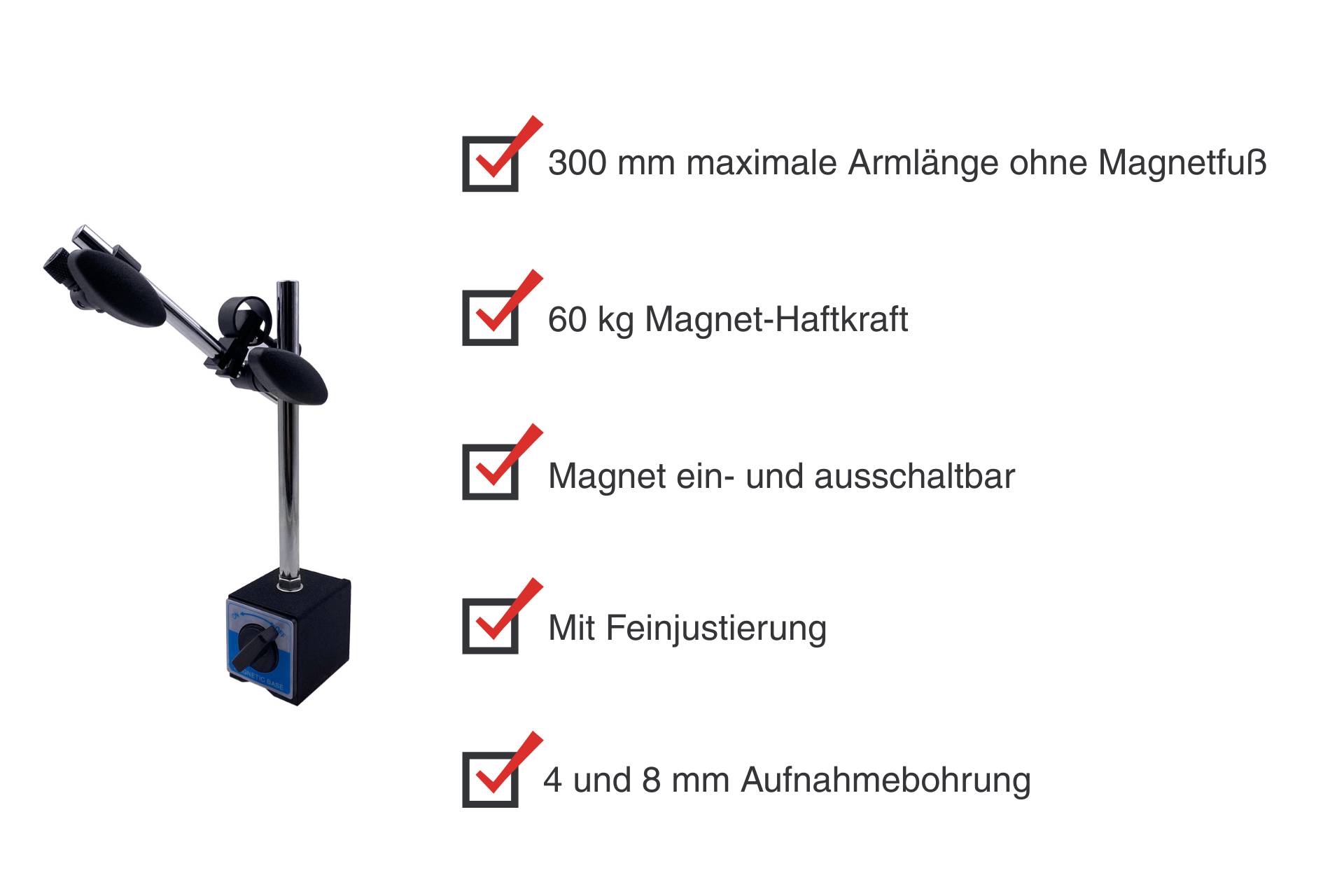

300 mm maximum arm length without magnetic base
60 kg magnetic holding force
Magnet can be switched on and off
With fine adjustment
4 and 8 mm mounting hole
Description of the
The joints of this measuring stand can be clamped individually and securely using clamping screws. The arm has a fine adjustment by means of a knurled screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There are two cylindrical holders at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
Scope of delivery
- 1 x measuring stand with magnetic base and fine adjustment
- 1 x additional holder for dial gauge
More about the brand and products fromÂ
The joints of this measuring stand can be clamped individually and securely using clamping screws. The arm has a fine adjustment by means of a knurled screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There are two cylindrical holders at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
This measuring stand is characterised in particular by the fact that the three joints can be easily and quickly clamped centrally using a locking screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There is both a cylindrical mount and a dovetail mount at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
This measuring stand is characterised in particular by the fact that the three joints can be easily and quickly clamped centrally using a locking screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There is both a cylindrical mount and a dovetail mount at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch.
This set consists of a measuring stand and a matching analogue dial gauge. The joints of this measuring stand can be clamped individually and securely using clamping screws. The arm has fine adjustment by means of a knurled screw. The articulated arm is mounted on a magnetic base with a ground-in prism. The base is also ground on the back so that the stand can also be used lying down. There are two cylindrical holders at the end of the articulated arm. The magnetisation of the base can be activated or deactivated using a toggle switch. The analogue dial gauge has a measuring range of 0 to 10 mm with a reading accuracy of 0.01 mm. The dial gauge can be attached to the measuring stand either via the clamping shaft with a diameter of 8 mm or via an additional mounting hole on the rear.
