ER32 collet set 2 - 20 mm SK30 (DIN 2080) / M12 in aluminium case
€150.00*
Prices incl. 19% VAT. plus Shipping costs
Delivery time: 1-3 working days **
More than 10 pieces available (online and in specialist shops)
Intended use
Collets are used to clamp tools with a cylindrical clamping shank or cylindrical workpieces with high precision in machine tools. The collet is pushed or pulled into a conical holder. The tool or workpiece is precisely centred and securely clamped by the evenly arranged longitudinal slots of the collet.
Technical data
| Clamping range [mm]: | 2 - 20 |
|---|---|
| Collet chuck material: | HRC 58-60, Hardened, Spring steel 65Mn |
| Material collet chuck: | HRC 40-48, Hardened, Steel Cr40 |
| Revolutions max. [mm]: | 8.000 |
| System accuracy max. [mm]: | 0,012 |
| Total length of collets [mm]: | 165 |

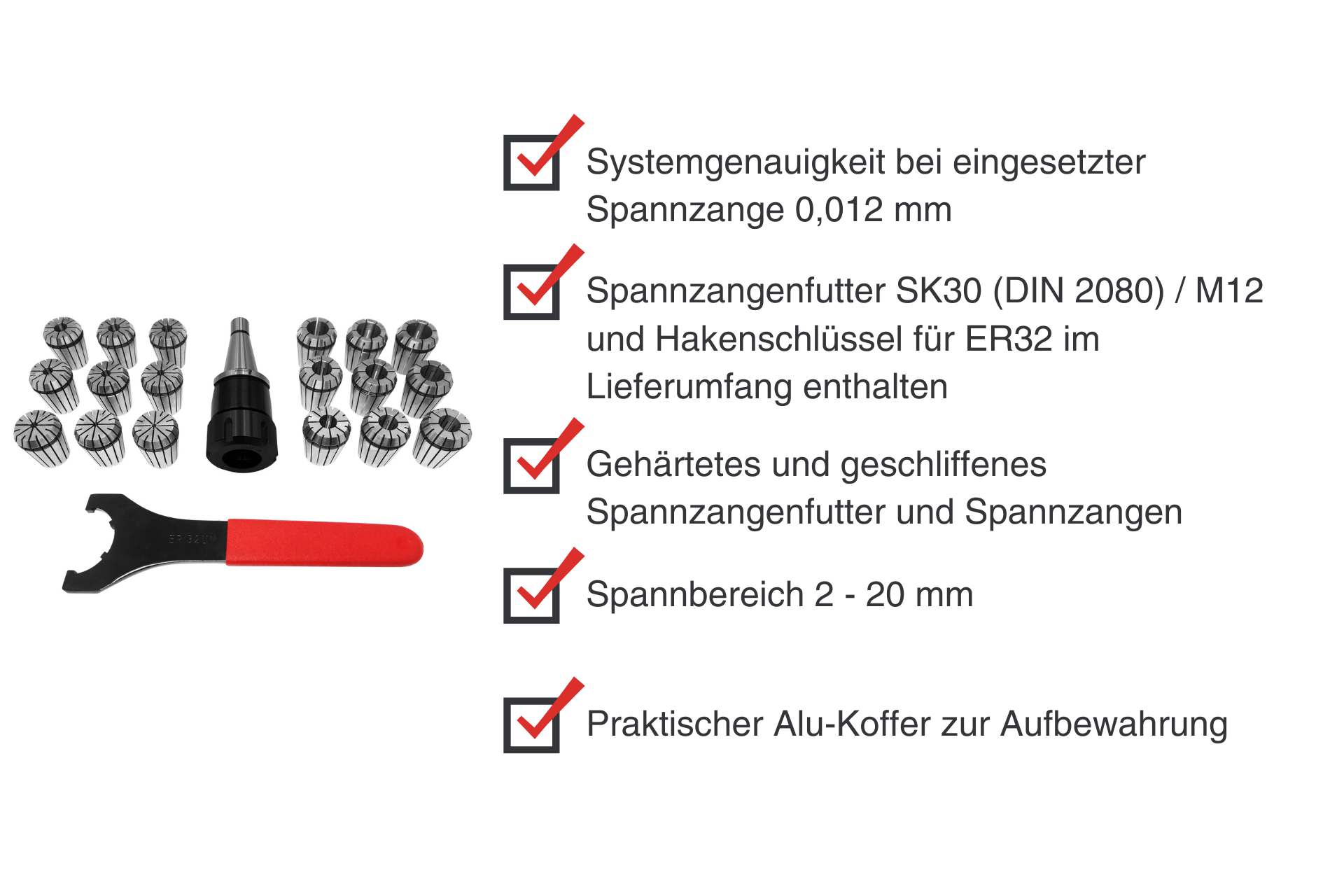

System accuracy with collet chuck used 0.012 mm
Collet chuck SK30 (DIN 2080) / M12 and hook spanner for ER32 included in the scope of delivery
Hardened and ground collet chuck and collets
Clamping range 2 - 20 mm
Practical aluminium case for storage
Description of the
This collet set consists of 18 collets with a clamping range of 2 - 20 mm. An SK30 (DIN 2080) / M12 ER32 collet chuck and a suitable hook spanner for the union nut are also included. Both the collet chuck and the collets are hardened and ground. The collets are made of 65Mn spring steel, the collet chuck is made of Cr40 steel. The union nut can be professionally tightened using an open-end spanner with a width across flats of 36 mm. Two milling surfaces are fitted in the collet chuck holder for counter-holding. The system accuracy with the collet chuck in place is 0.012 mm. The set is supplied in an aluminium case with foam insert for practical and safe storage.
Scope of delivery
- 1 x collet chuck ER32 SK30 (DIN 2080) / M12
- 1 x hook spanner for collet chuck ER32
- 1 x collet chuck clamping range 3 - 2 mm
- 1 x collet chuck clamping range 4 - 3 mm
- 1 x collet chuck clamping range 5 - 4 mm
- 1 x collet chuck clamping range 6 - 5 mm
- 1 x collet chuck clamping range 7 - 6 mm
- 1 x collet chuck clamping range 8 - 7 mm
- 1 x collet chuck clamping range 9 - 8 mm
- 1 x collet chuck clamping range 10 - 9 mm
- 1 x collet chuck clamping range 11 - 10 mm
- 1 x collet chuck clamping range 12 - 11 mm
- 1 x collet chuck clamping range 13 - 12 mm
- 1 x collet chuck clamping range 14 - 13 mm
- 1 x collet chuck clamping range 15 - 14 mm
- 1 x collet chuck clamping range 16 - 15 mm
- 1 x collet chuck clamping range 17 - 16 mm
- 1 x collet chuck clamping range 18 - 17 mm
- 1 x collet chuck clamping range 19 - 18 mm
- 1 x collet chuck clamping range 20 - 19 mm
- 1 x aluminium storage case
More about the brand and products from
This collet set consists of 18 collets with a clamping range of 2 - 20 mm. An SK30 (DIN 2080) / M12 ER32 collet chuck and a suitable hook spanner for the union nut are also included. Both the collet chuck and the collets are hardened and ground. The collets are made of 65Mn spring steel, the collet chuck is made of Cr40 steel. The union nut can be professionally tightened using an open-end spanner with a width across flats of 36 mm. Two milling surfaces are fitted in the collet chuck holder for counter-holding. The system accuracy with the collet chuck in place is 0.012 mm. The set is supplied in an aluminium case with foam insert for practical and safe storage.
This collet set consists of 18 collets with a clamping range of 2 - 20 mm. An MK2 / M10 ER32 collet chuck and a suitable hook spanner for the union nut are also included in the scope of delivery. Both the collet chuck and the collets are hardened and ground. The collets are made of 65Mn spring steel, the collet chuck is made of Cr40 steel. The union nut can be professionally tightened using an open-end spanner with a width across flats of 36 mm. Two milling surfaces are fitted in the collet chuck holder for counter-holding. The system accuracy with the collet chuck in place is 0.012 mm. The set is supplied in an aluminium case with foam insert for practical and safe storage.
This collet set consists of 18 collets with a clamping range of 2 - 20 mm. An MK3 / M12 ER32 collet chuck and a suitable hook spanner for the union nut are also included. Both the collet chuck and the collets are hardened and ground. The collets are made of 65Mn spring steel, the collet chuck is made of Cr40 steel. The union nut can be professionally tightened using an open-end spanner with a width across flats of 36 mm. Two milling surfaces are fitted in the collet chuck holder for counter-holding. The system accuracy with the collet chuck in place is 0.012 mm. The set is supplied in an aluminium case with foam insert for practical and safe storage.
This collet set consists of 18 collets with a clamping range of 2 - 20 mm. An MK4 / M16 ER32 collet chuck and a suitable hook spanner for the union nut are also included.
Both the collet chuck and the collets are hardened and ground. The collets are made of 65Mn spring steel, the collet chuck is made of Cr40 steel.
The union nut can be professionally tightened using an open-end spanner with a width across flats of 36 mm. Two milling surfaces are fitted in the collet chuck holder for counter-holding. The system accuracy with the collet chuck in place is 0.012 mm.
The set is supplied in an aluminium case with foam insert for practical and safe storage.
