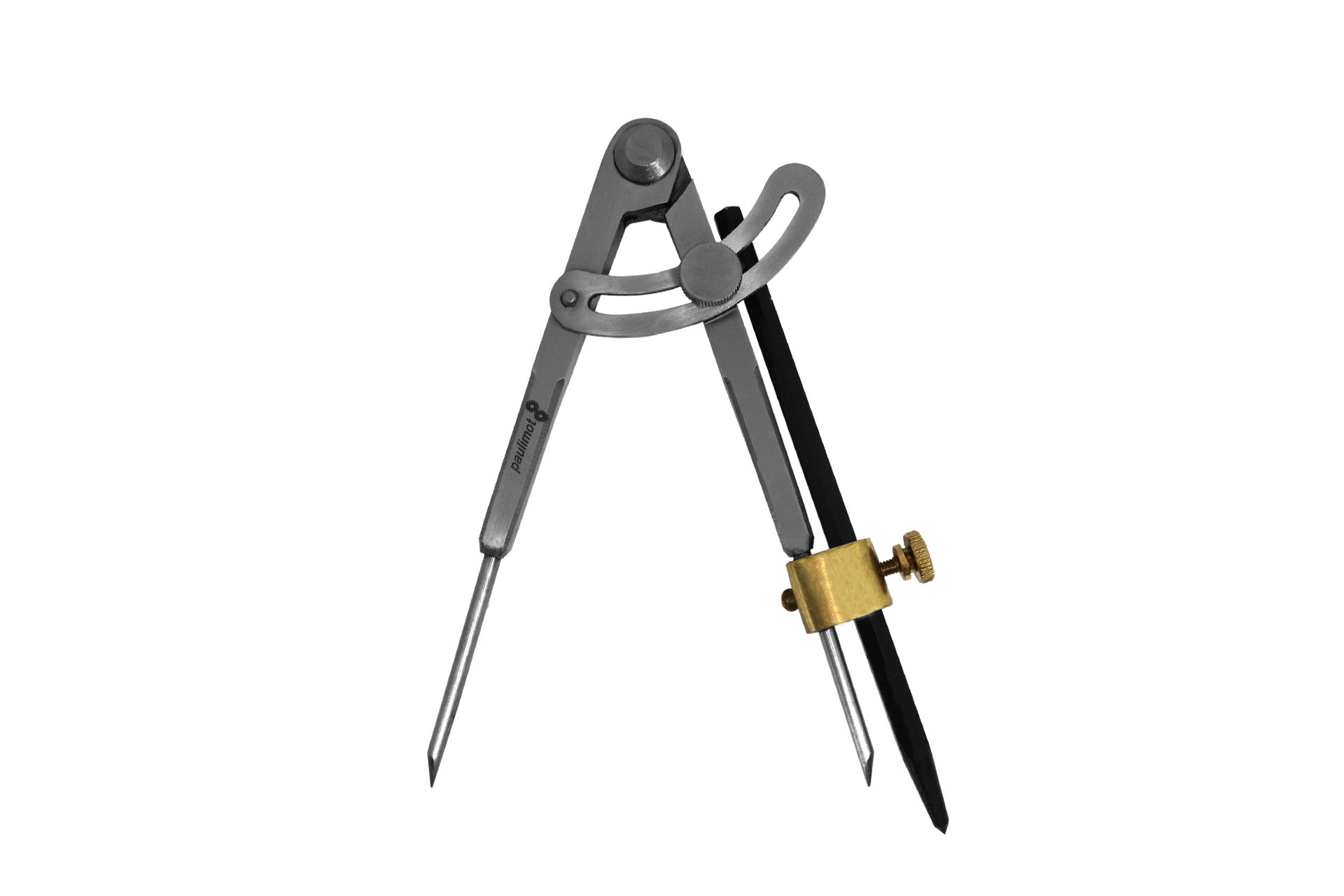

Marking compass 150 mm with pencil holder and marking needle
Intended use
A marking compass (often also called an arc compass) is ideal for marking out and marking circular dimension lines on materials such as leather, plastic, aluminium, brass, copper, steel and wood. The scriber can also be used to measure and accurately reproduce diameters or lengths.
Technical data
| Hardness of the scriber [HRC]: | 80 - 90 |
|---|---|
| Length of leg [mm]: | 150 |
| Material scriber needle: | Carbide |
| Measuring range [mm]: | 1 - 200 |
| Tool material: | Aluminium, Copper, Leather, Plastic, Steel, Wood, brass |
| Width with adjusting bend [mm]: | 50 |
For marking out or marking circular dimension lines
Measuring range: 1 to 200 mm
Fixed, hardened tips
Angular, stable legs
With pencil holder and scriber
Description of the
The precision compass has two octagonally ground legs with a length of 150 mm, which can be spread to a range of 200 mm. This allows you to mark or scribe a circle with a maximum diameter of approx. 400 mm with the scriber.
The measuring range can be set quickly and easily using a locking screw on the quarter circle (arc). By loosening the screw, you can spread the two legs to the desired measuring range. To obtain the desired measuring range, place the tip of the compass on a ruler or folding rule and pull the two legs apart. You can now prevent the set measuring range from slipping by tightening the screw on the bow again.
Scope of delivery
- 1 x marking compass 150 mm
- 1 x pencil holder
- 1 x marking needle
